- Pneumatic operation
- Corrosion resistant
- High-flow turndown
- Greater reliability
- Simple maintenance
- Ease of installation
- Intrinsically safe
- Flows up to 9 gph (35 lph)
- Discharge pressure 13,100 psi (903 bar)
- Manual mode or automatic with solenoid valve
The “V” Series pump is a range of compact, self-contained, pneumatic metering pumps suitable for injecting a wide variety of chemicals that range from 0.07 gph to 9 gph (0.27 lph to 34 lph) and pressures up to 13,100 psig (903 barg).

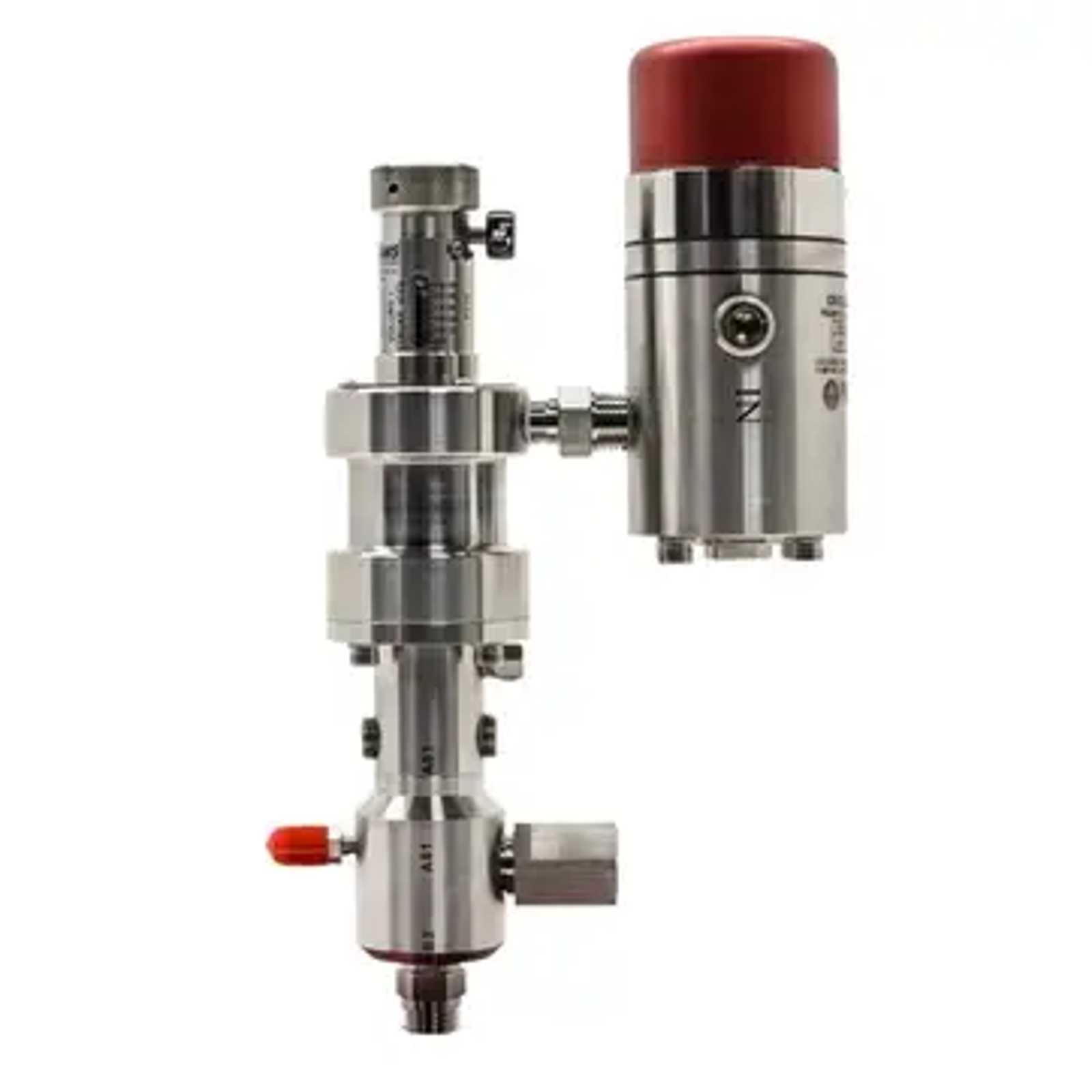

Often used in oil & gas applications requiring micro-injection of neat chemicals, the CP125V125 model is capable of injecting volumes as low as 0.025 cc/stroke at pressures up to 8000 psig (552 barg). This makes it an ideal niche pump for extreme applications.
Made of 316 SS, the “V” Series pumps are robust and capable of meeting the toughest challenges.

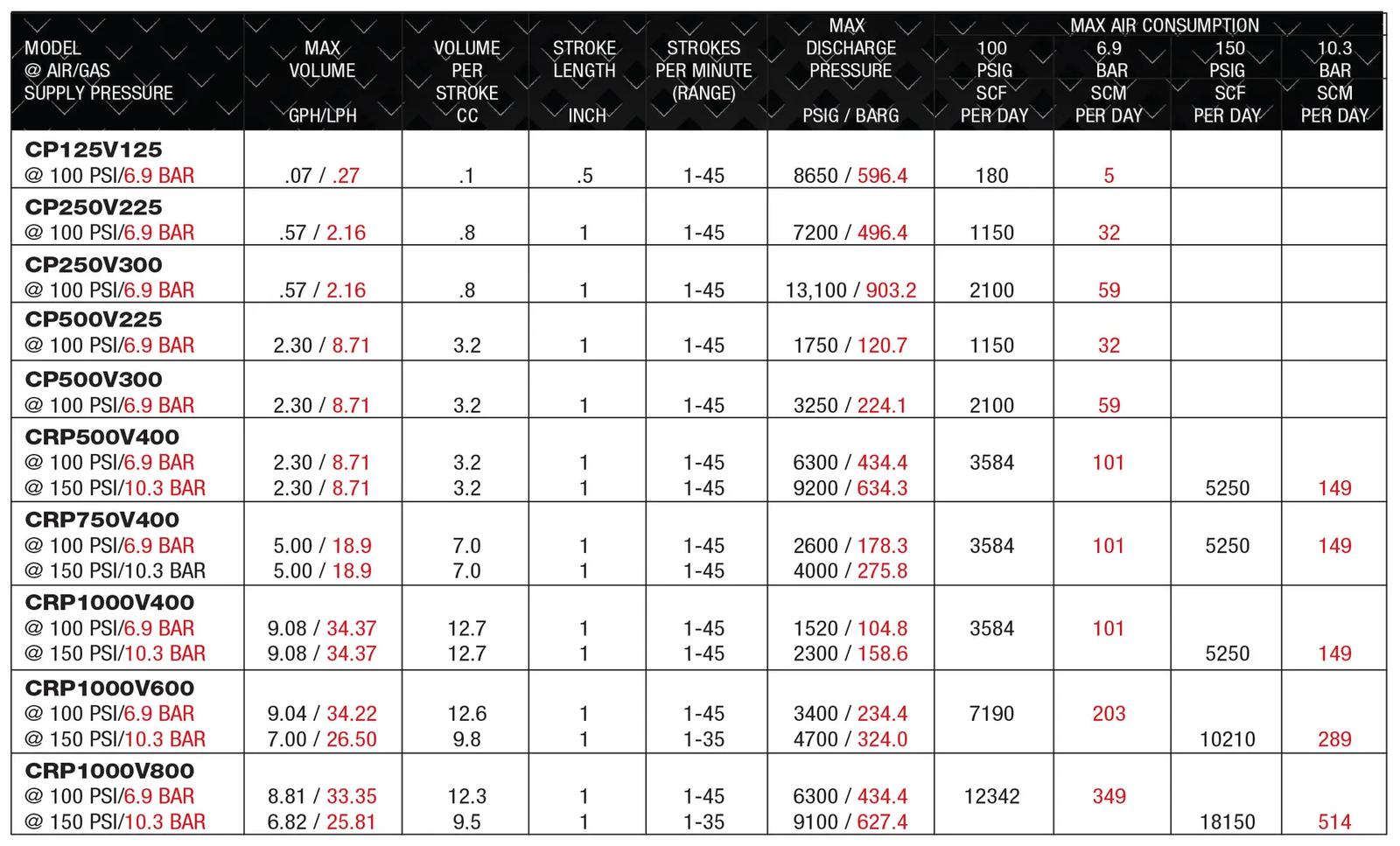

*This data should only be used to provide you with your initial size selection. You must refer to the actual performance graphs on pages 6 and 7 in order to verify your pump selection.
REPAIR KIT NO. RK1000V800
REPAIR KIT NO. RK1000V800
30956 V Series IOM 2014
30956 V Series IOM 2014
V Series Dual Seal Plunger Pump
The Williams “V” Series pneumatic metering pumps are engineered for PERFORMANCE, QUALITY, SAFETY and SIMPLICITY.
31025 5-2019 P125V V&X PL RK
31025 5-2019 P125V V&X PL RK
31026 5-2010 P750 V&X PL RK
31026 5-2010 P750 V&X PL RK
31027 6-2009 P500 V&X PL RK
31027 6-2009 P500 V&X PL RK
31028 11-09 P250V V&X PL RK
31028 11-09 P250V V&X PL RK
REPAIR KIT NO. RK1000V400
REPAIR KIT NO. RK1000V400
Brochure
The Williams “V” Series pneumatic metering pumps are engineered for PERFORMANCE, QUALITY, SAFETY and SIMPLICITY.
Micro-Injection Pumps

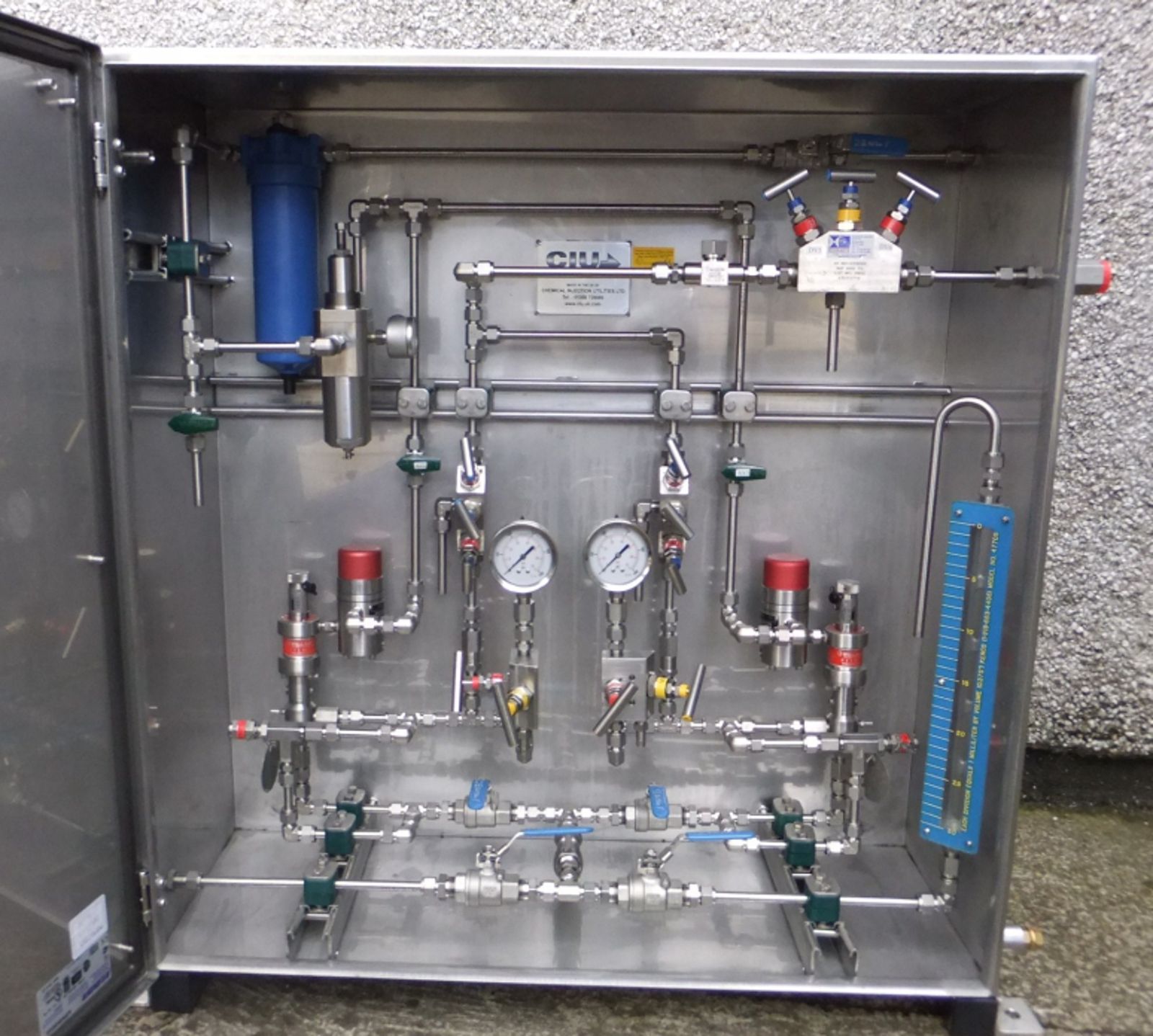

Micro-injection pump is a precision metering pump that can inject very low volumes such as 0.025 cc/stroke into a given process
The Basics of Packed Plunger Pumps
A packed plunger pump is a plunger type pump that doses chemicals under pressure to inject a set amount of chemical into a process.
